Block, bleed and equalize — in one compact assembly.

BETLOCK manifolds protect and enhance the availability of expensive instrumentation investments, with a wide range of wetted materials for the most challenging process conditions.

View Products

Three manifold configurations for every process requirement.

All BETLOCK manifolds can be designed and manufactured according to specific process requirements — custom configurations on request.

● BLOCK & BLEED

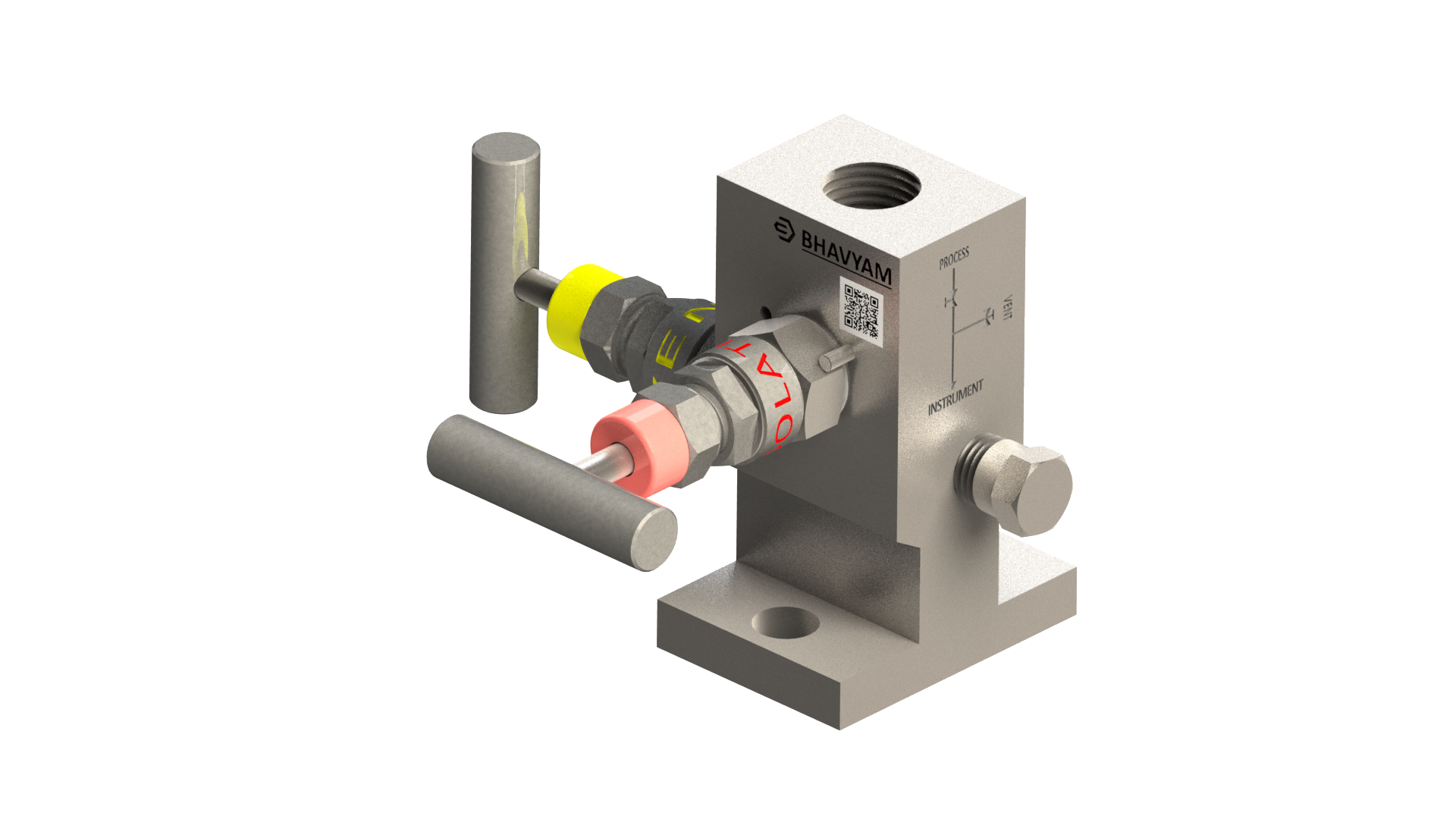

2 Valve Manifold

Isolate and drain a pressure instrument from the process.

Block (isolation) and bleed (vent/drain) valves in one body
Ideal for gauge pressure and absolute pressure transmitters
Integral and remote mount configurations
Compact, lightweight — lower installation cost
Available in high-pressure versions up to 420 Bar

Enquire →

● BLOCK & BLEED

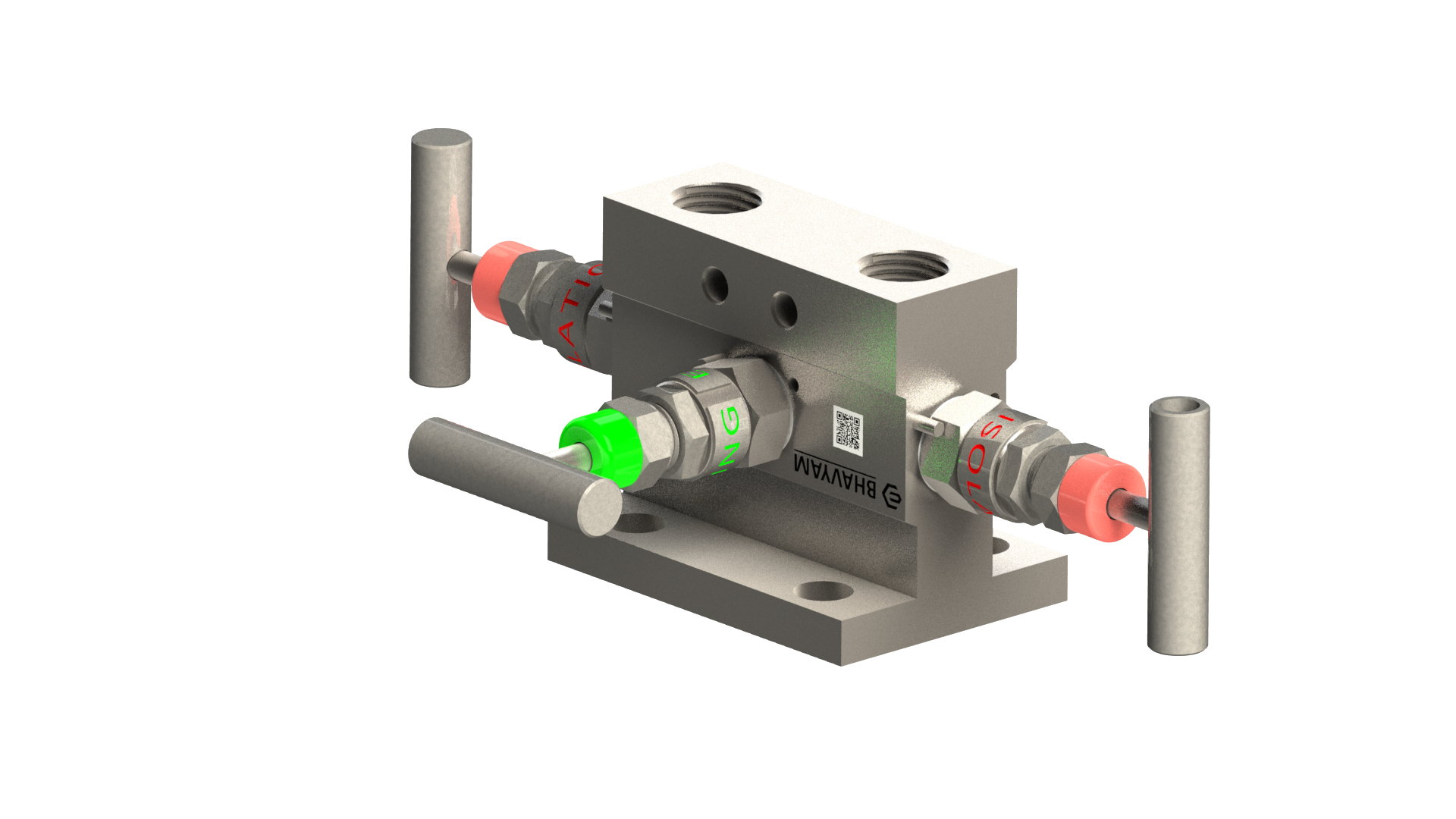

3 Valve Manifold

Isolate, equalize and vent for differential pressure transmitters.

Two block valves + one equalize/bypass valve
Ideal for DP flow, level and pressure transmitters
Enables calibration without process shutdown
T-Type, H-Type and Coplanar flange designs
Process conn: ½" NPT or ½" BSP (M/F)

Enquire →

● FULL FUNCTION

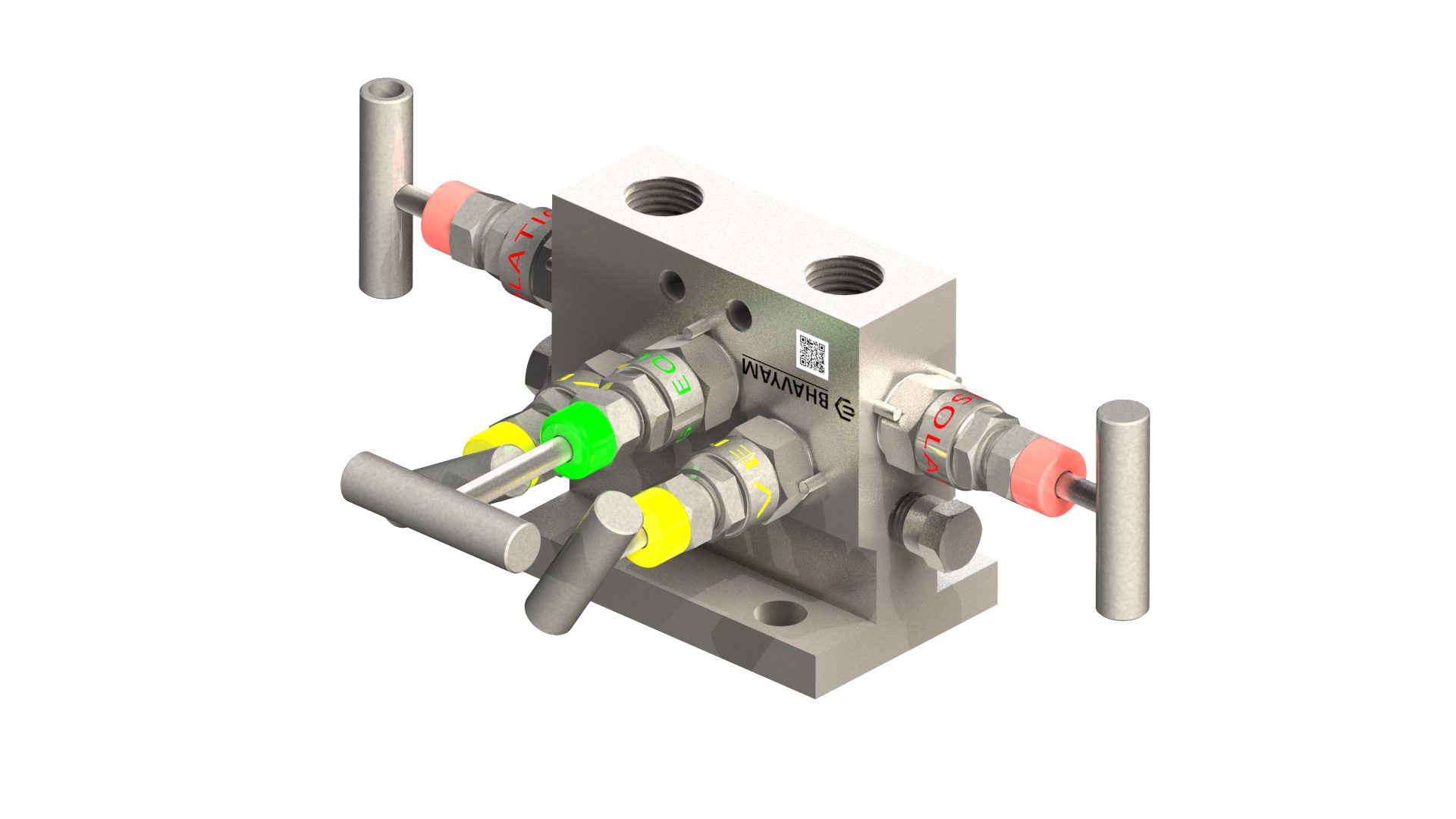

5 Valve Manifold

Full block-bleed-equalize-calibrate function in one compact body.

Two block + two bleed + one equalize valve
Safe isolation, calibration and zero check without removal
Ideal for critical DP measurements in hazardous areas
Integral or remote mount — vertical or horizontal flange
Flanged per IEC 61518 / DIN 19213 available

Enquire →

● PRECISION CONTROL

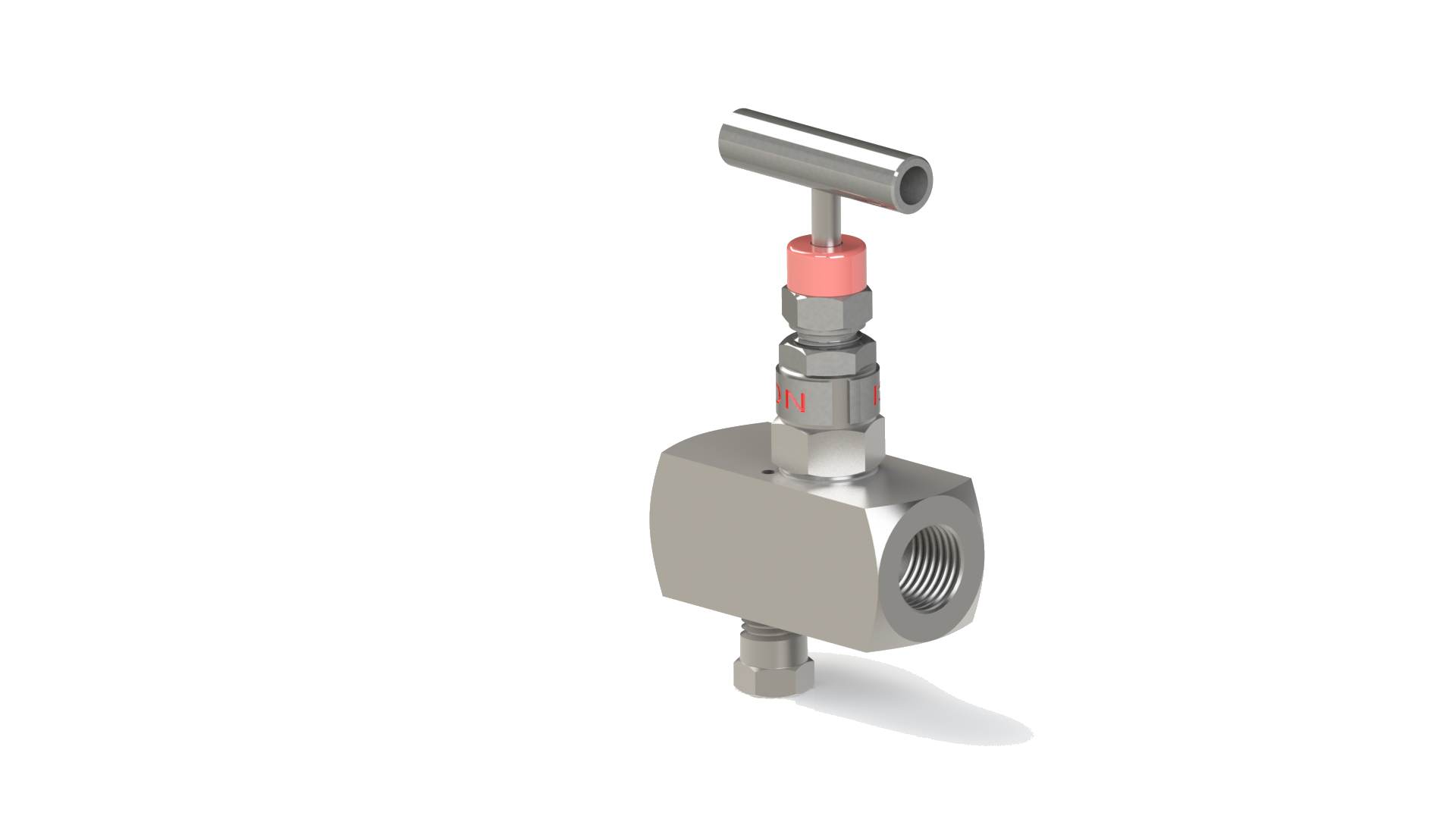

Needle Valves

Precise flow and pressure throttling control.

Suited for instrument isolation and venting
Compact, robust design for impulse lines
Available in multiple end connection types

Enquire →

Integral or remote — to suit any installation.

Integral Mounting

Block & Bleed design
T-Type (top) mounting
H-Type (horizontal) mounting
Coplanar flange design (DIN / ANSI)
Vertical flange design
Direct mount to transmitter — eliminates impulse tubing

Remote Mounting

Pipe-to-Pipe (NPT Female) design
Used where transmitter is remote from process tap
Allows flexible installation routing
Instrument connection: ½" NPT (M/F), ½" BSP (M/F)
Flanged per IEC 61518/B / DIN 19213
Custom configurations on request

Available in a comprehensive range of wetted materials.

Component	Standard	Premium	Exotic
Body Material	SS 304SS 316SS 316L	Duplex SSCarbon Steel	Hastelloy-CMonelTitanium
Process Connection	½" NPT (M/F)½" BSP (M/F)	Flanged IEC 61518	DIN 19213Custom
Instrument Connection	½" NPT (M/F)	½" BSP (M/F)	Flanged
Pressure Rating	Up to 420 Bar	6000 PSI	As per design
Temperature Range	-50°C to +230°C	Higher range with exotic materials

Custom manifolds sized and quoted in 24 hours.

Share your process fluid, pressure, temperature and transmitter model — we'll specify the right manifold configuration and provide a firm quotation.
